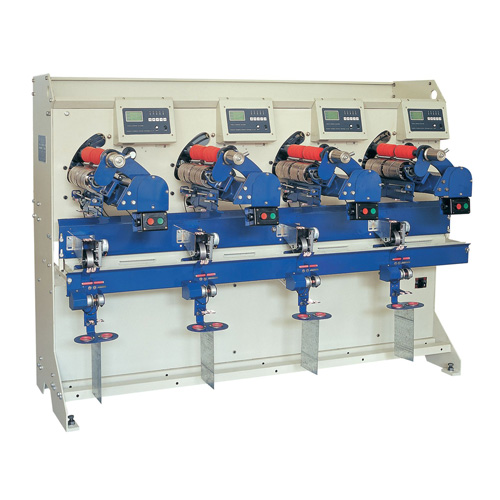

- Product Name: YF(MH)-A (previous modle no. is YF-H-A) high speed sewing thread cone winding machine
- Model NO.: YF(MH)-A (previous modle no. is YF-H-A)
- Origin: NINGBO CHINA
- Packing: WOODEN CASE/PLYWOOD CASE
- Brand Name: YONGFU
- Delivery Time: it depends on the machine quantity
- Minimum Order: 1 set
- Supply Ability: 200 Sets / Month
- Quality System Certification: ISO9001, CE attestation
-
Product Details: YF(MH)-A (previous modle no. is YF-H-A) high speed sewing thread cone winding machine
YF high speed winding machine is applicable for the winding various threads such as the sewing thread, embroidery thread, nylon thread etc. It is designed to fill up cones, king spool and tubes.
YF high speed winding machine features:
1.with variable frequency speed governor, From 200meter/minutes to 1000meters/mitutes.
2.it has independent computer control of each spindle, computer measuring device, auto measuring the thread length or cone circle.
3. with electromagnetic tension control, precise and easy to control.
4. with thread break auto-stop device, auto-memory funtion when power off.
5. with grooved drum thread feeder and oil pump cyclic oiling device etc.
6. this machine feature as the fine effect, high efficiency, easy operation, fine safety reliability and so on.
The major parameter table of the high speed winding machine
| Model |
YF(MH)-A(the previous model no. is YF-H-A) |
YF(MH)-Y(the previous model no. is YF-H-B) | YF(MH)-H(the previous model no. is YF-H-C) | ||||
| No.of spindles | 4 spindle | ||||||
| Coil stroke | 3'' 4'' | 5''6'' | 3''4'' | 5''6'' | 3''4'' | 5''6'' | |
| Cone for each spindle | 2 | 1 | 2 | 1 | 2 | 1 | |
| Max. winding diameter | 160mm(Apt to the bobbin size) | ||||||
| Motor | 380V 50Hz 250W×4 | ||||||
| Machine volume | 2.05ML×1.00MW×1.50MH | ||||||
| Weight of the Machine | 600KGS | ||||||
| Measurement | 2.15ML×1.10MW×1.65MH | ||||||
| Total weight | 700KGS | ||||||
The panel parameter table of the high speed winding machine
| Parameter | Apellation | Range |
| 0 | Password | 0000~99999 |
| Setting parameter value | ||
| 1 | Full bobbin length | 0~60000m |
| 2 | Winding linear speed | 200~1000(m/min) |
| 3 | Oil wheel speed ratio | 30~2000 |
| 6 | Starting tension | 0~100% |
| 7 | Ending tension | 0~100% |
| 8 | Fiber detector condition | 0.0~9999 |
| 9 | Empty bobbin position confirmation | Computer test value |
| 10 | Positioning confirmation | Computer test value |
| 11 | Length correction coefficient | 0.800~1.200 |
