- Product Name: YF-A sewing thread cone winding machine
- Model NO.: YF-A
- Origin: NINGBO CHINA
- Packing: WOODEN CASE/PLYWOOD CASE
- Brand Name: YONGFU
- Delivery Time: it depends on the machine quantity
- Minimum Order: 1 set
- Supply Ability: 200 Sets / Month
- Quality System Certification: ISO9001, CE attestation
-
Product Details: YF-A sewing thread cone winding machine
YF-A sewing thread cone winding machine function features:
1. itis equipped with the new generation metering counter
2. it is equipped with thread break auto-stop device.
3. it is equipped with electron tension and silicone oiling device
4.it is equipped with automatic memory function when power off.
The main technical parameters:
| 4" | 5" | 6" | |
| No of spindles | 6 | 6 | 6 |
| Cone for each spindle | 2 | 2 | 1 or 2 |
| Thread Length | 0-10000(M) | 0-15000(M) | 0-30000(M) or 1000g |
| Motor | 380V/220V 50Hz 180W X 6 | ||
| Machinevolume | 2.25(or2.08)ML × 0.70MW × 1.15MH/2.25(or2.08) ML × 0.80MW × 1.15MH | ||
| Weight of the Machine | 400Kg | ||
| Measurement | 2.35(or2.17)ML × 0.80MW × 1.25MH/2.35(or2.17) ML × 0.90MW × 1.25MH | ||
| Weight | 450Kg | ||
Upper tray and back cover are the additional devices. We can equip them with the machine according to customer's requirement.
-

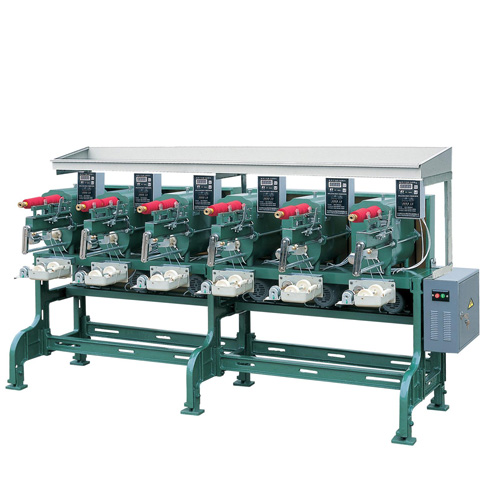

Product Images: YF-A sewing thread cone winding machine
